| Shell Sizes | Options | Current Rating | Operating Temperature |
|---|---|---|---|
| 9, 15, 25, 37 and 50 pins | Threaded locking inserts (LI), Grounding bracket (GB), Grounding bracket with board lock (GBL) | 5.0A | -55 to +125°C |
Features and Benefits
EMI-Filtered D-Sub Adapters and Connectors are engineered to mitigate electromagnetic interference through an advanced Pi filter design, offering a large range of capacitive options. This helps ensure optimal EMI suppression and signal integrity across high-performance applications. These products effectively attenuate a wide range of high-frequency noise, ensuring clean signal transmission even in environments with significant electromagnetic disturbance.
The connectors’ compact design, which integrates filtering capabilities, not only saves valuable space but also simplifies system designs, making them ideal for densely packed systems. This design efficiency leads to cost savings by reducing the number of components needed, lowering manufacturing and assembly costs. Additionally, their compliance with stringent EMI and EMC standards—along with adherence to safety and environmental standards like RoHS—ensures they meet critical regulatory requirements.
Offering extensive compatibility and customization options, these adapters and connectors afford designers the opportunity to tailor connectors to specific needs, optimizing performance for different EMI environments. Built with advanced materials, EMI-Filtered D-Sub Adapters and Connectors feature robust construction that enhances both electrical performance and mechanical durability, making them ideal for demanding applications in military, aerospace and industrial settings.
Datasheets and Guides
Datasheet (PDF)
Applications by Industry
Engine controls
Flight controls
Navigation systems
Airborne radios
Engine controls
Flight controls
Navigation systems
Night vision sensors
Tactical weapons
Target acquisition systems
Unmanned aerial vehicle flight controls
Gas monitors
Process equipment
Electronics
Imaging equipment
Cellular base stations
Mobile/cellular repeaters
This is not a definitive list of applications for this product. It represents some of the more common uses.
Frequently Asked Questions

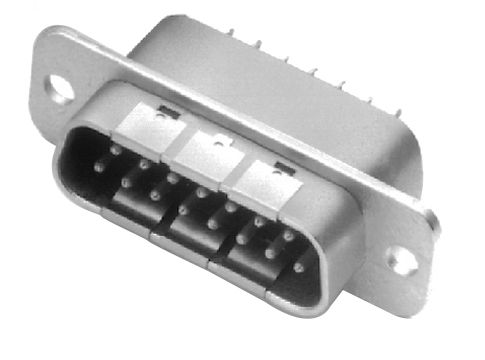

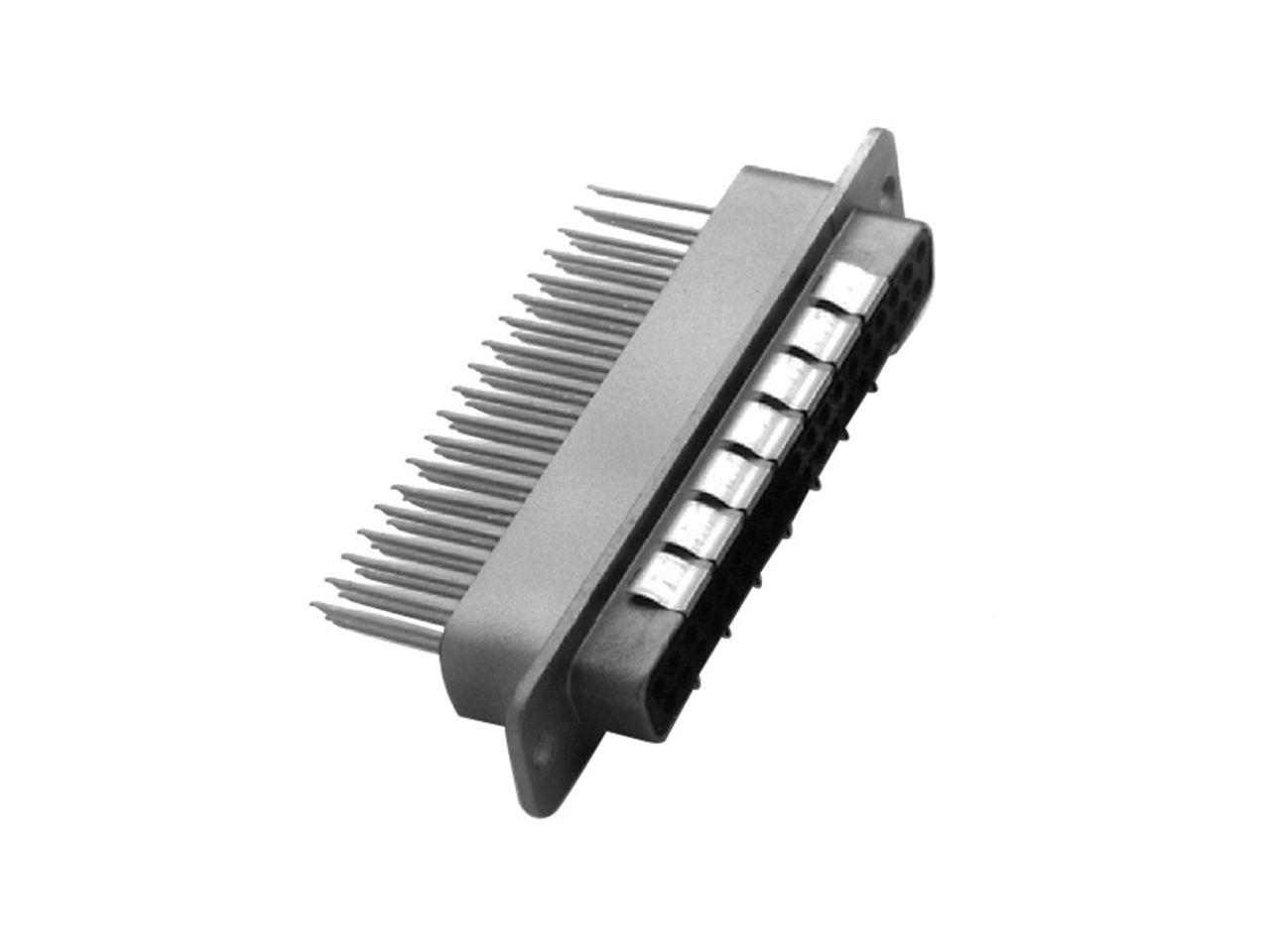

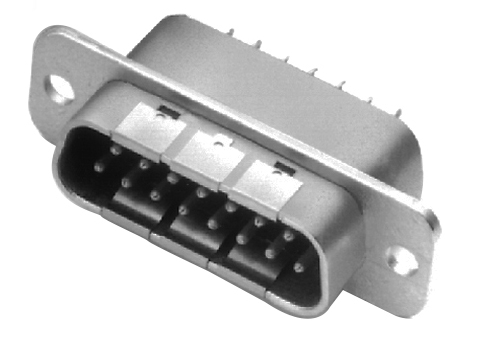

What shell sizes are available for EMI-Filtered D-Sub Pi Adapters and Connectors?
Our EMI-Filtered D-sub products are available in a variety of shell sizes, including pin counts of 9, 15, 25, 37 and 50. These sizes ensure compatibility with a wide range of applications.
What are the available terminal configurations for these adapters and connectors?

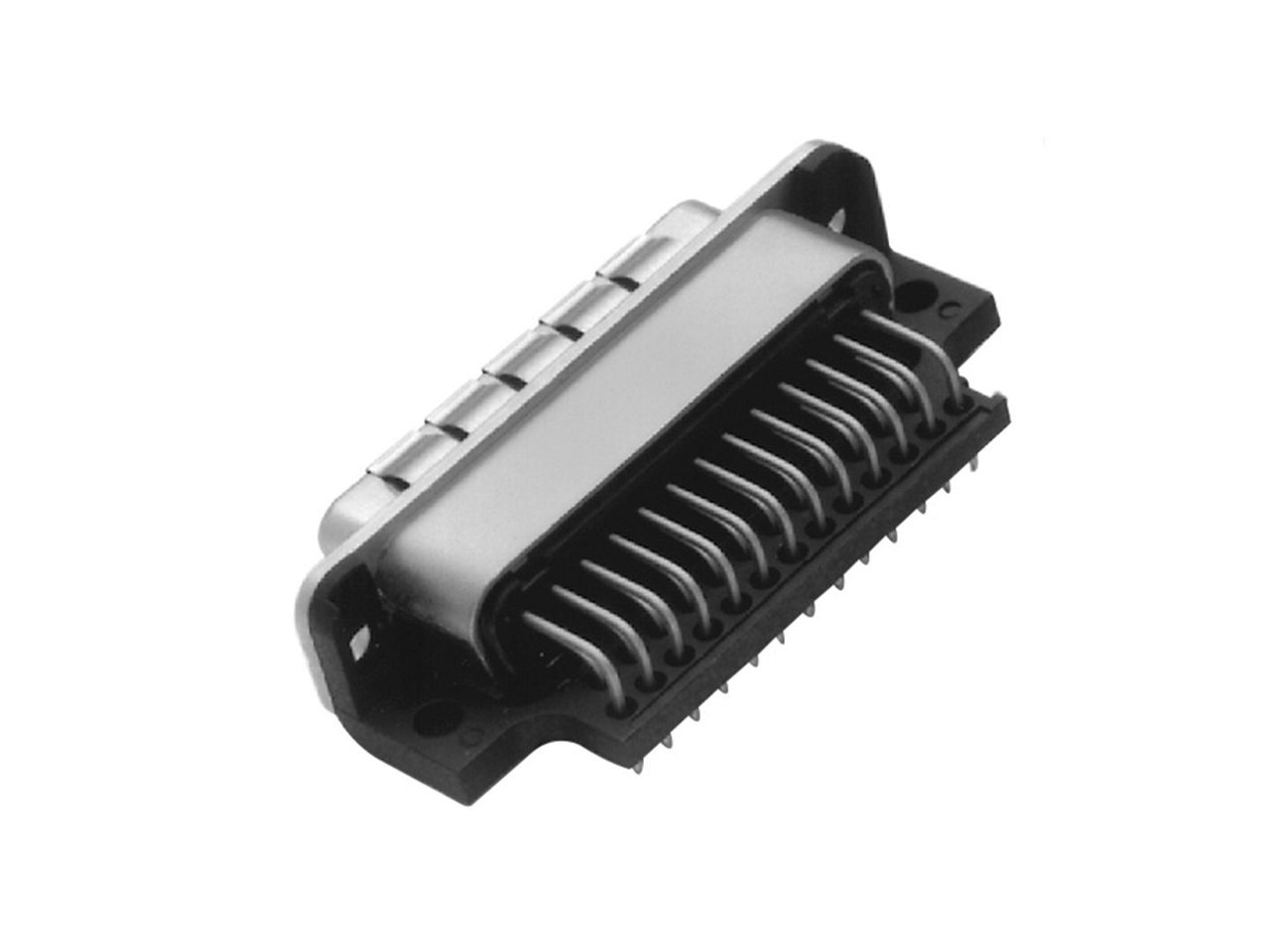

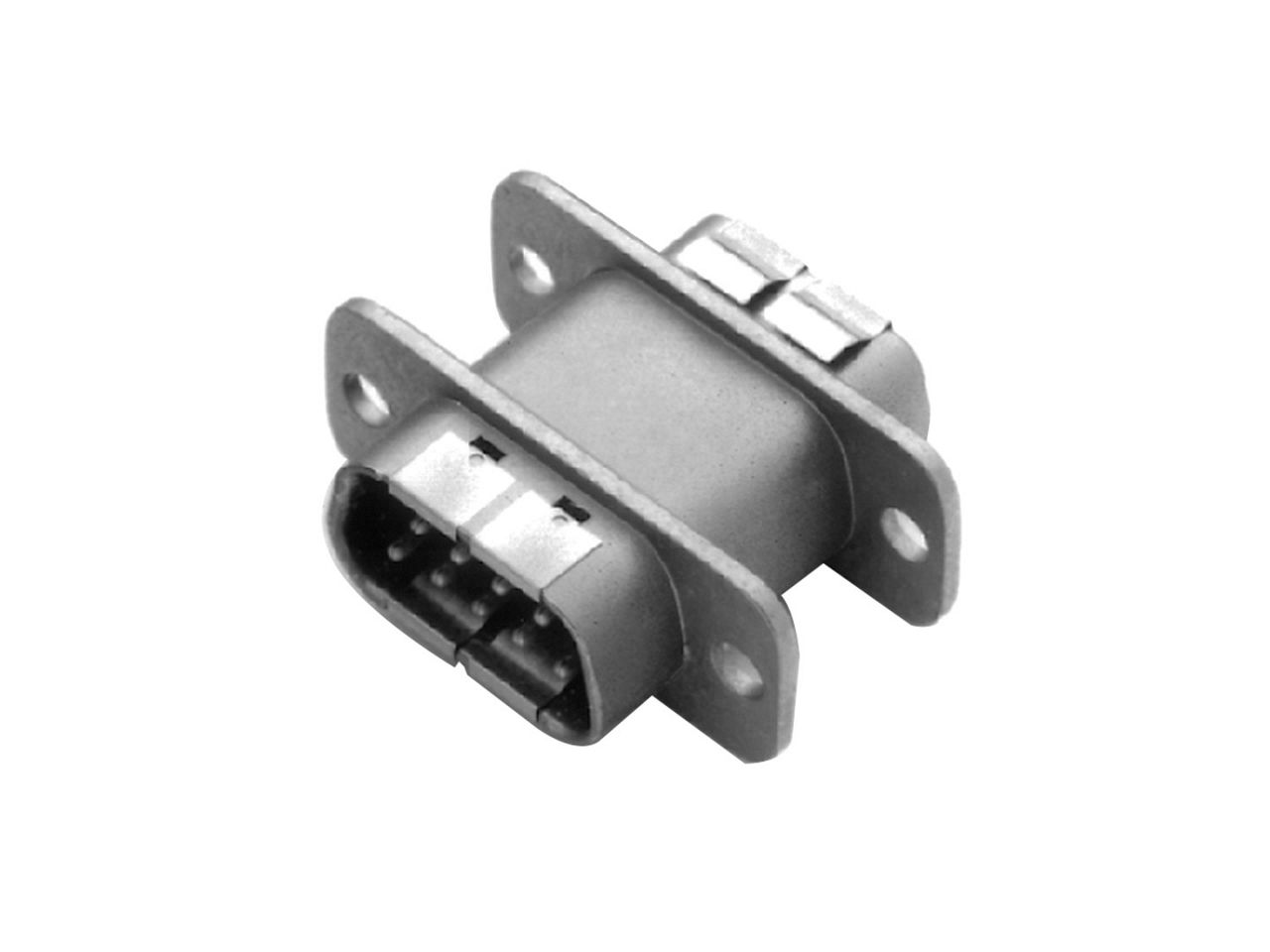

We offer several terminal configurations to meet your specific needs, including right-angle and straight PCB, solder cup and adapter options. This variety promotes flexibility for your design and implementation process.
What filter types and capacitance values can I choose from?
The capacitance values available include 100 picofarads (pF) (Pi), 1000 pF (Pi), 2500 pF (Pi) and 4000 pF (Pi). These options allow you to tailor the connector to your specific EMI filtering requirements.
Are there any special options available for these adapters and connectors?
Yes, we offer a range of special options, including heavy gold plating, four to 40 mounting threads, grounding brackets and additional hardware. For multiple options or unique requirements, please contact Molex for assistance.
