Printed Electronic Sensor

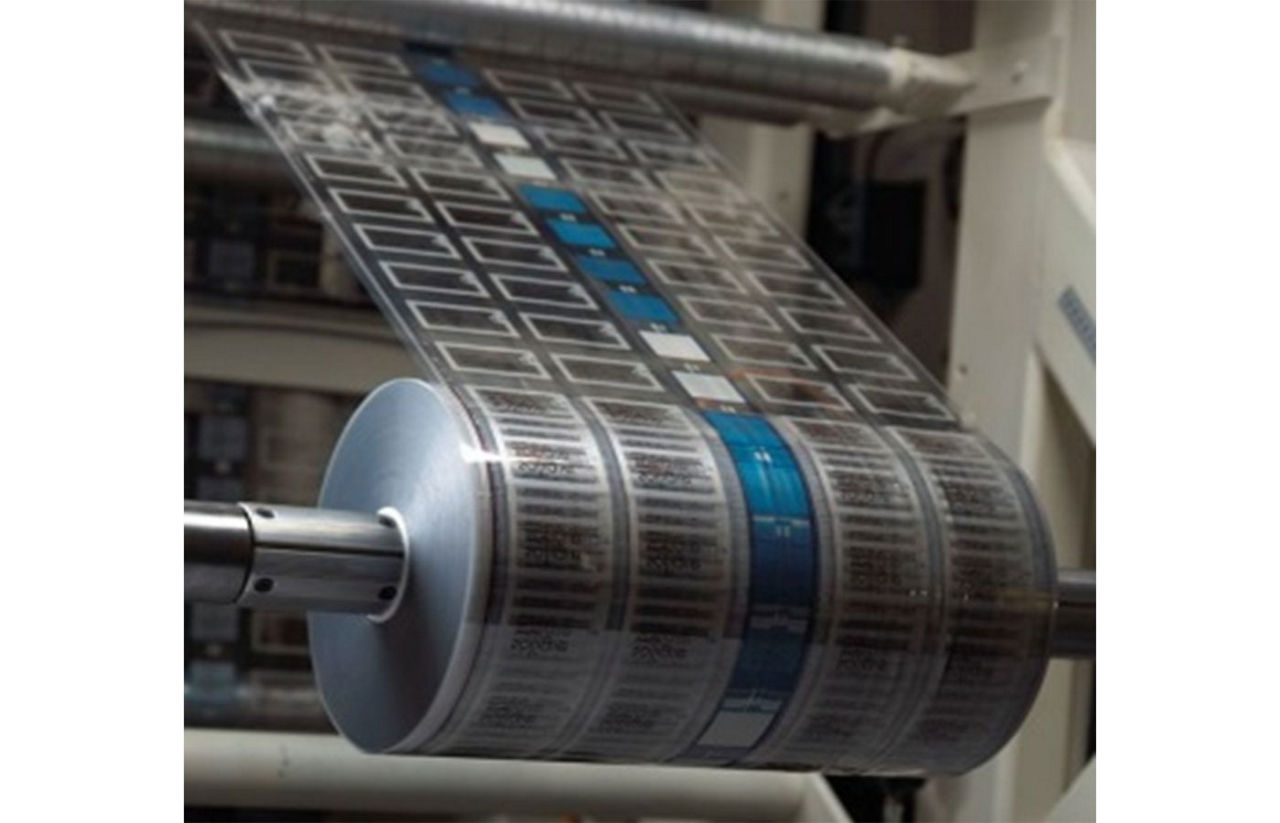

Printed Electronic Sensor Systems utilize a uniquely integrated design and manufacturing process to produce innovative printed electronic sensor systems able to incorporate a wide variety of components on printed electronic substrates.

Features and Benefits


Sensor and component integration

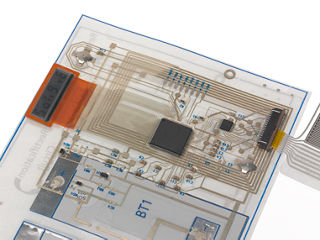

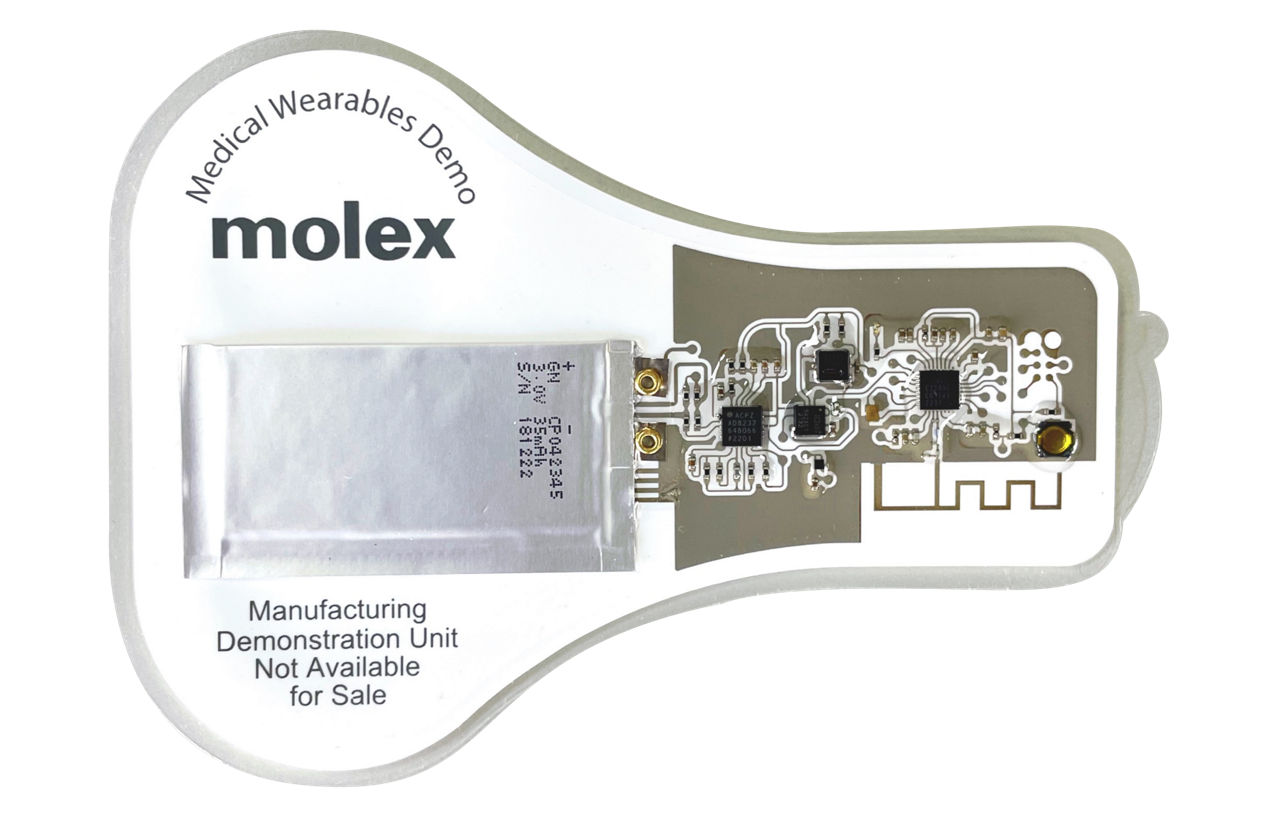

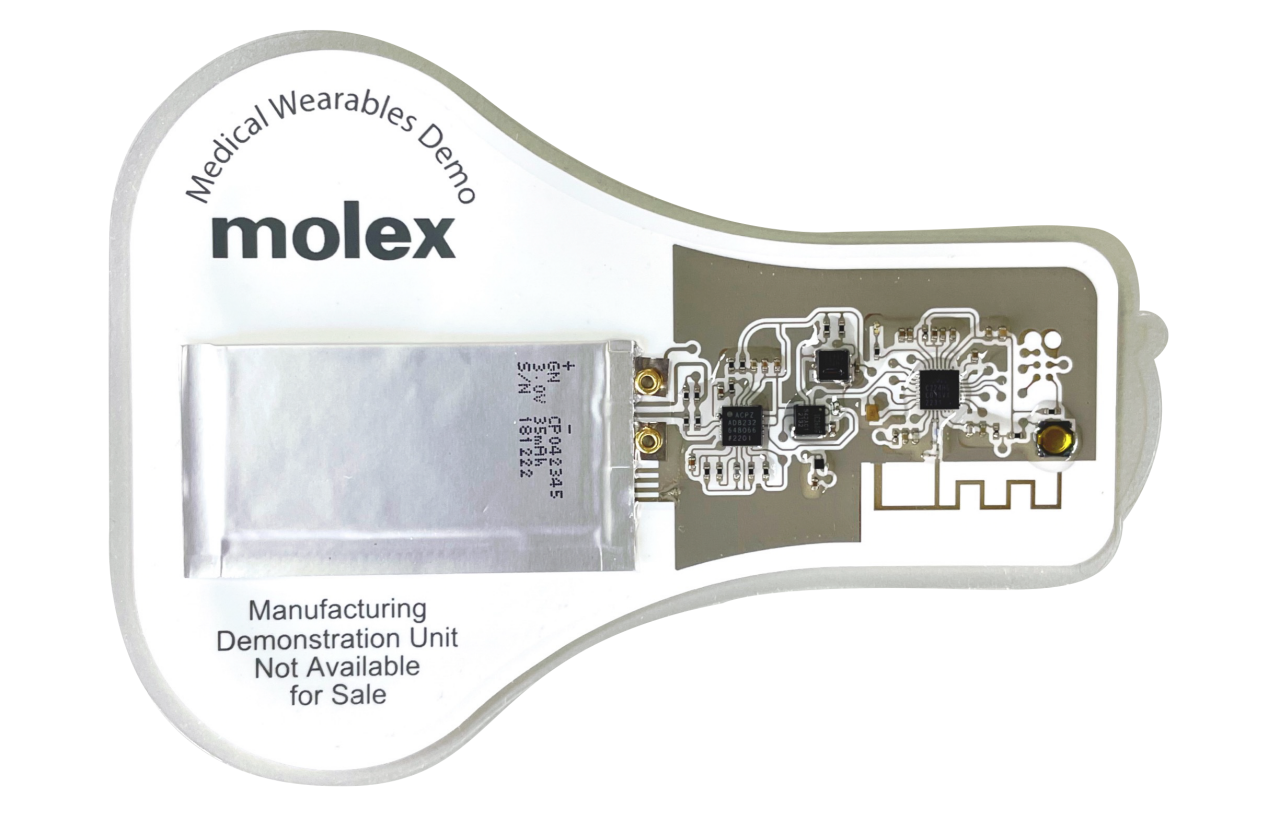

Surface mount technology integrates a variety of components and sensors into one compact, easy-to-use wireless device.

  • BLE connectivity to mobile applications
  • On/off dome switch
  • Printed antenna
  • Thin-flex battery for one-time use
  • Flexible substrate
  • Hydrogel and electrodes
  • Adhesive layer and release liner

ITAR, ISO 13485 and ISO 9001

Ensures adequate quality, system and documentation controls are in place.


What makes this product different

The combination of a strong understanding of the printed and conventional electronic markets, and best-in-class manufacturing capabilities for implementation of various sensor technologies and supporting circuitry in a flexible, integrated package.


Extensive experience and broad knowledge of technology, materials, and processes associated within the printed electronics industry:
•  Leverages technical knowledge, through collaborative product development, into commercially viable printed electronic sensor solutions
•  Boosts functionality and specialization of new products in line with design requirements

A recognized leader with several decades of experience in printed electronics, uniquely positioned to serve the industry by delivering innovative electronic sensor solutions:
• Provides complex solutions leveraging relationships, reputation and knowledge
• Allows complex projects to move on schedule and within budget

Experienced in executing leading-edge, multi-million dollar development contracts:
Ability to define and execute large scale structured programs with a stage gate approach

Overview


Customers often recognize a need for a solution that can be addressed by new technologies in the printed electronics space, but are uncertain as to how to combine highly disjointed components into an integrated system. Molex provides a single source for design, engineering and manufacturing process development. This custom process is based on a rigorous approach developed from understanding customer requirements, use case scenarios and functional specifications jointly developed with the customer.

Product differentiation and increased functionality in new products are vital needs for these customers as well. Broad market knowledge enables Molex to identify and solve complex issues facing the customer. A wide variety of material and process configurations provides differentiation and innovation for the customer’s end product.

Applications


Diagnostics
Security and logistics
Smart packaging and labels

Diagnostics
Health equipment
Wearable sensors

This is not a definitive list of applications for this product. It represents some of the more common uses.
